Overview

The M75-SQTOP-0000 is specifically designed for mounting TraffiCalm's Flashing Sign systems atop square poles. This mount facilitates optimal orientation of the solar panels—specifically pointing south—to maximize solar efficiency crucial for powering controllers and collaborators.

Applicable Models

This mounting device is compatible with various configurations of TraffiCalm's Flashing Sign systems, ensuring a broad applicability across several hardware setups.

  • M75-SA300-CTL2
  • M75-SA300-CTL3
  • M75-SA300-CLB2
  • M75-SA300-CLB3
  • M75-SA30M-BSC2
  • M75-SA30M-BSC3
  • M75-SA300-BSC2
  • M75-SA300-BSC3
  • M75-SA30M-CTL2
  • M75-SA30M-CTL3
  • M75-SA30M-CLB2
  • M75-SA30M-CLB3

What's In The Box

Quantity Part Description TraffiCalm Part Number Image of Part
1
Check Nut
with lock set screw
 002-00331-0000
2 Lock Ring 029-05073-0000
1 Hex treaded nipple 029-05074-0000

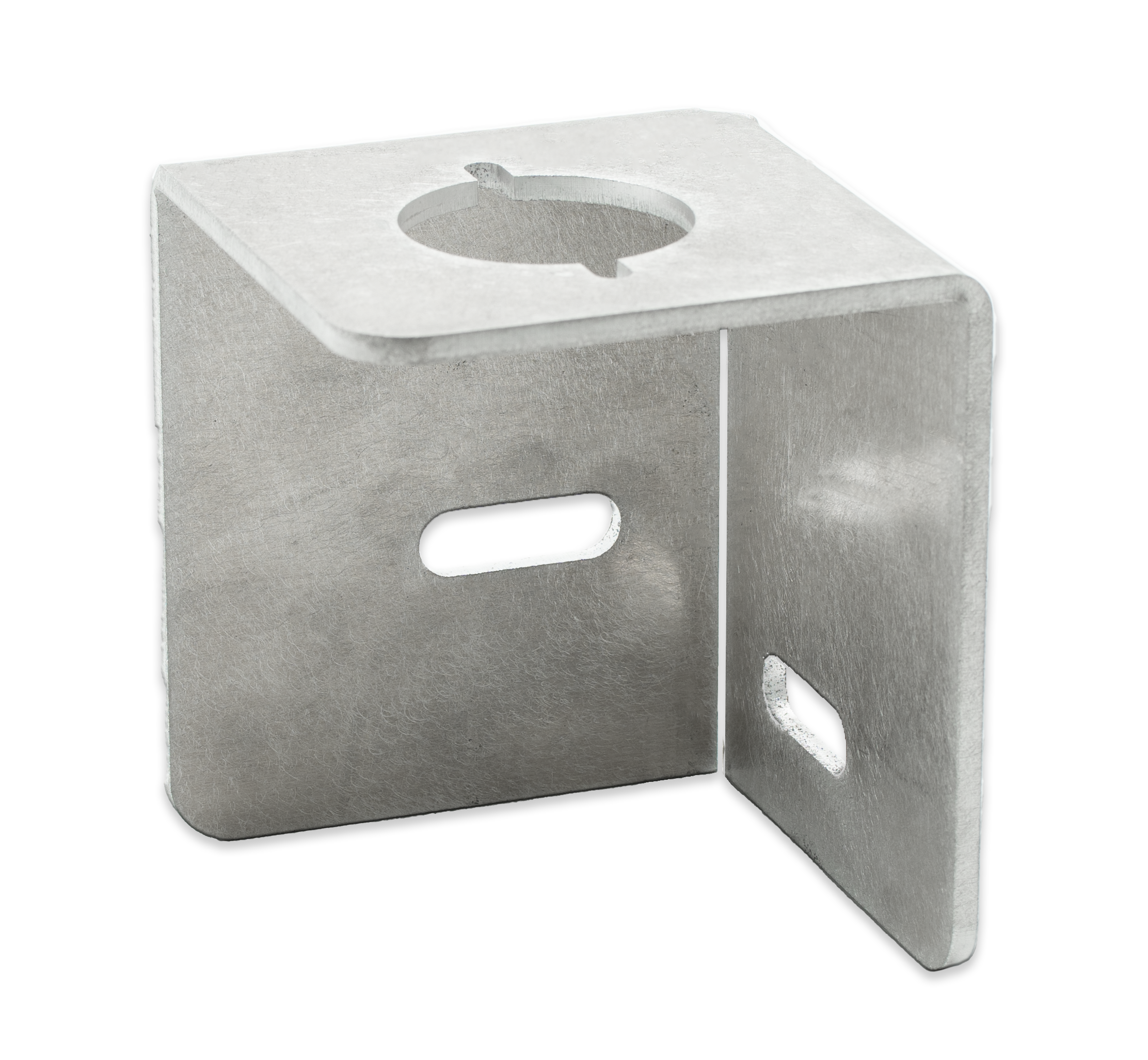

1 Top square pole mount 015-03367-0000

1
TraffiCalm ShipKit
 012-SA300-0KIT

TraffiCalm ShipKit

The TraffiCalm ShipKit accompanies each flashing sign system shipment to provide all necessary mounting hardware. This inclusion ensures that customers have the required parts for various installation scenarios.

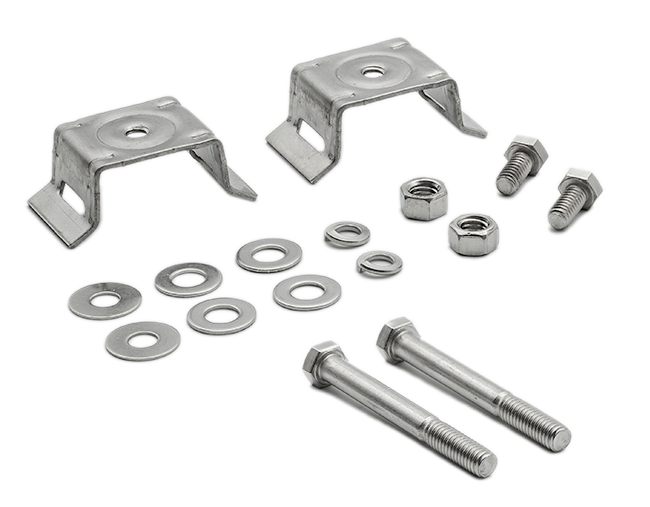

ShipKit Contents

  1. (2) Adjustable Band Brackets
  2. (2) Hex Cap Bolts, 5/16"-18 x 5/8", 18-8 (SS)
  3. (2) Hex Nuts, 3/8"-16
  4. (2) Lock Washers, 3/8"
  5. (4) Flat Washers, 3/8" (SS)
  6. (2) Flat Washers, 5/16"
  7. (2) Hex Bolts, 3/8"-16 x 3-1/4"

Note on Banding Brackets

Please note that not all components included in the ShipKit will be utilized in every installation. For example, the banding brackets designed for mounting on round poles are not applicable for installations using the Square Top of Pole Mount, leading to potential extra parts.

Installation

  1. Preparation and Setup:

    • Unpack your SHIPKIT and verify all parts listed are present.
    • Identify the installation site on a square perforated pole where the mount will be attached.

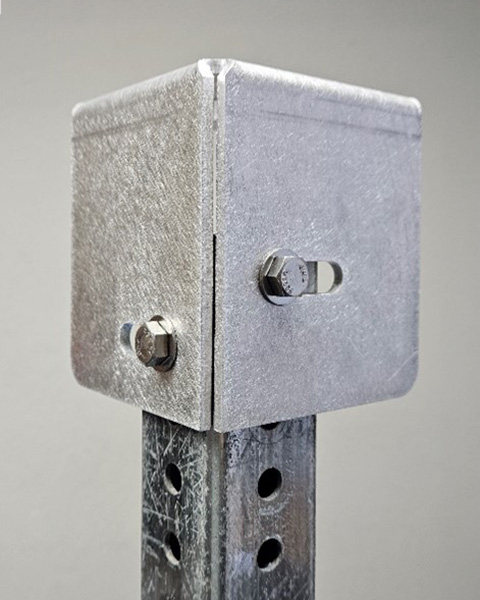

  2. Mounting the Top Square Pole Mount:

    • Use the 3/8 inch bolts from the SHIPKIT to attach the mount to the pole.
    • Align the slotted bolt holes on the mount with the pole's perforations to adjust the mount's vertical position as desired.

  3. Optional Wood Post Mounting:

    • If mounting to a wood post, procure appropriate lag bolts that suit the material and ensure stability and durability.

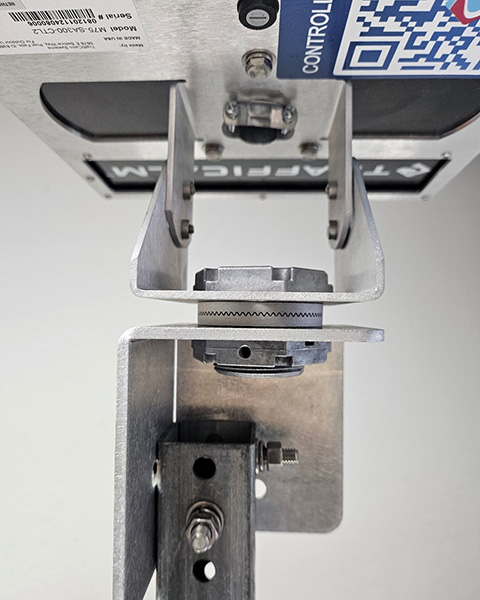

  4. Assembling Components:

    • Attach the hex threaded nipple, ensuring it is positioned to allow room for adjustments from either the top or bottom.

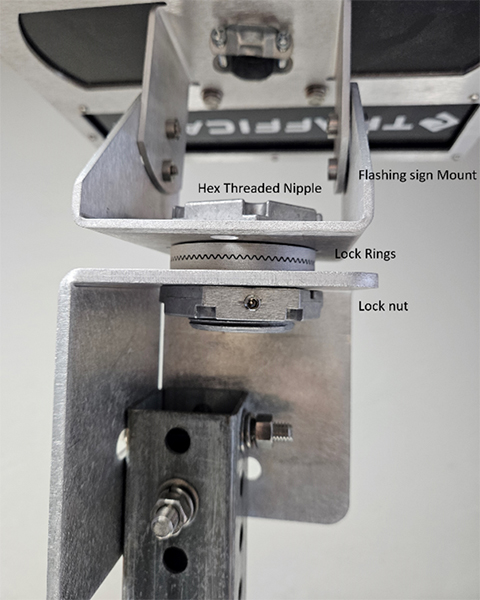

    • Secure the lock rings: the top ring with notches facing up to engage with the Flashing Sign Mount, and the bottom ring with notches facing down to align with the Top Square Pole Mount.

  5. Final Adjustments:

    • Before fully tightening the bolts, adjust the position to ensure optimal alignment and stability.
    • Once satisfied with the placement, tighten all connections to secure the mount firmly.

  6. Securing and Locking:

    • Install the Check Nut with the lock set screw using a 1/8th Allen head. Initially, remove the set screw to adjust and tighten the nut, then replace and secure the set screw in one of the two available positions to prevent loosening.

  7. Final Inspection and Setup Confirmation:

    • Conduct a thorough inspection to ensure everything is secure and correctly assembled.
    • Make any necessary adjustments for alignment and positioning to maximize the system's efficiency.

Images


Conclusion: With your Square Top of Pole Mount now securely installed, your TraffiCalm Flashing Sign System can be optimally positioned for solar performance and system functionality. For further assistance or more detailed configurations, consult the supplementary setup guides or contact our support team.
