Illuminator Wiring and Configuration
The wiring and configuration is dependent on the type of push button being utilized in the system.

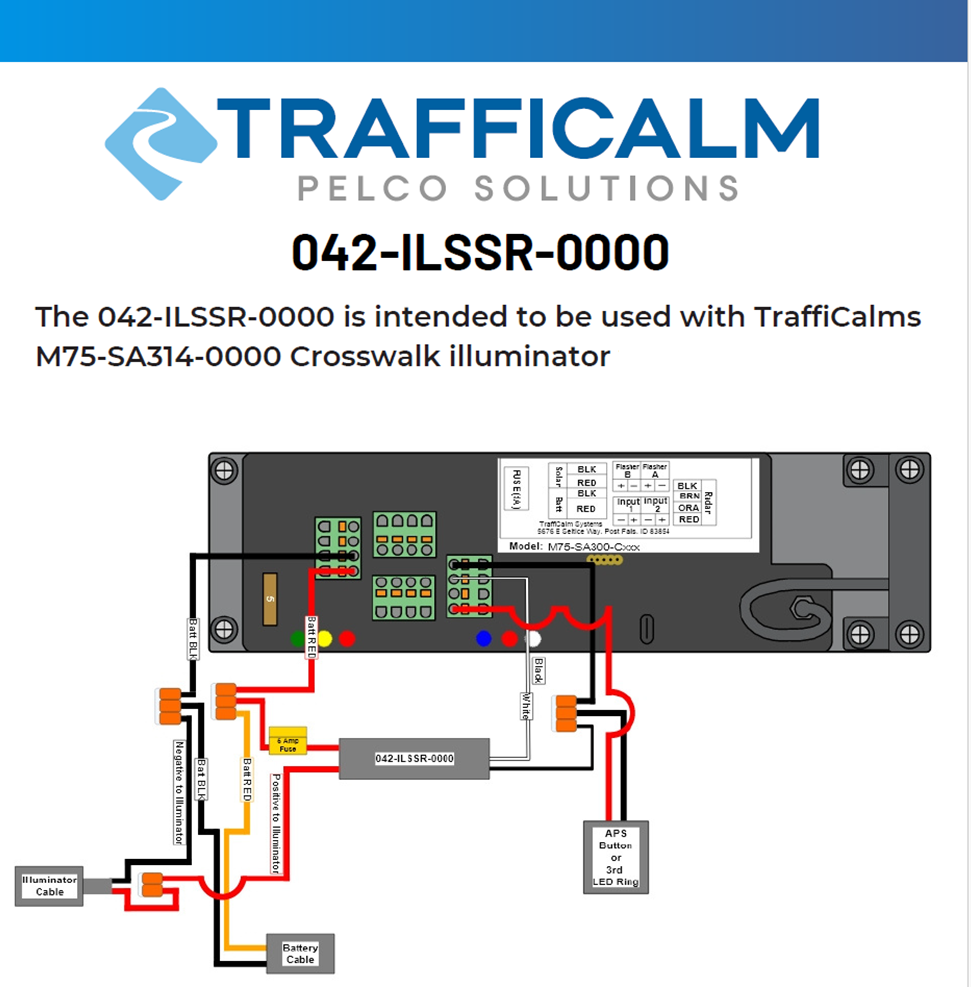

Each M75-SA314-0000 comes with a 042-ILSSR-0000 wiring harness that will not be used if using a simple 2 wire standard push button.
As mentioned above if a simple 2 wire push button is being used, the extra wiring harness will NOT be utilized.

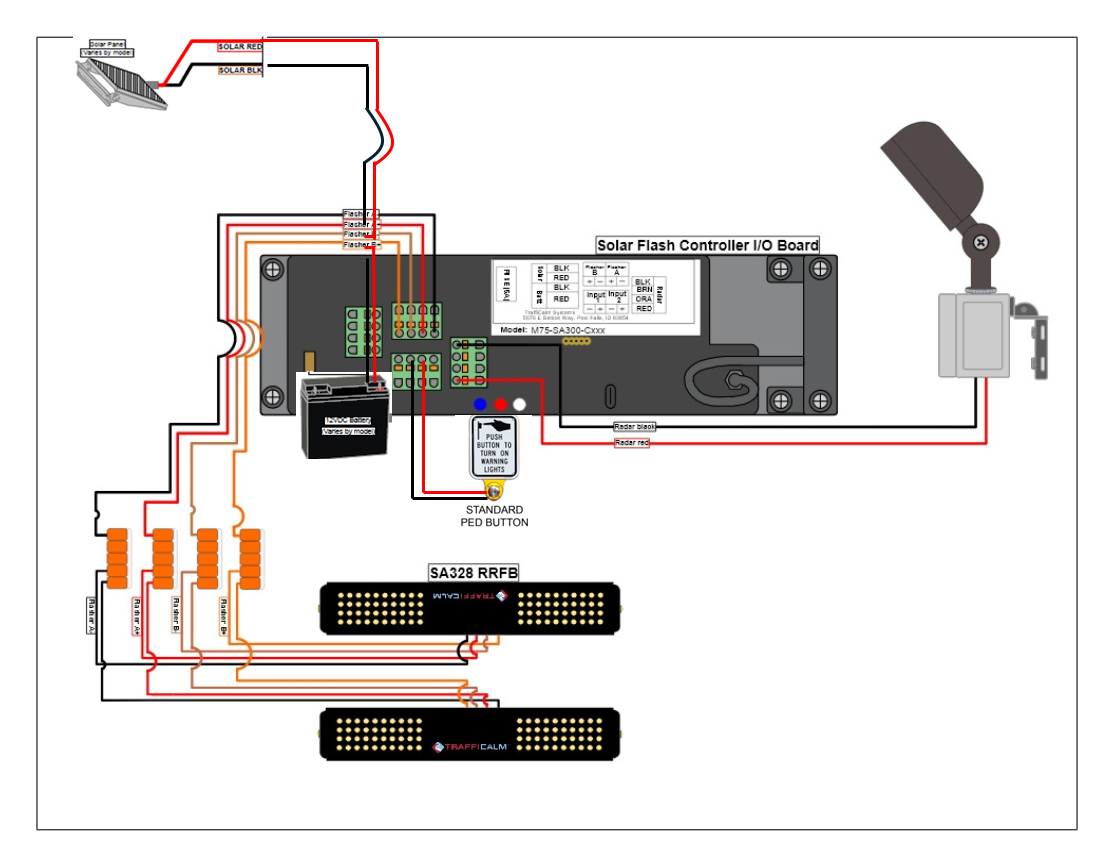

Simple 2 wire button wiring
Configuration with simple 2 wire push button:
After mounting the illuminator light and routing the wires into the control box.
1.Connect
the RED+ to
the RADAR port and the Black- to the RADAR port as shown.
2.In the software SETUP you will choose DEVICE TYPE: ILLUMINATOR.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Wiring and Configuration when an Audible Talking button is utilized, such as PEDSAFETY Guardian or Polara INX

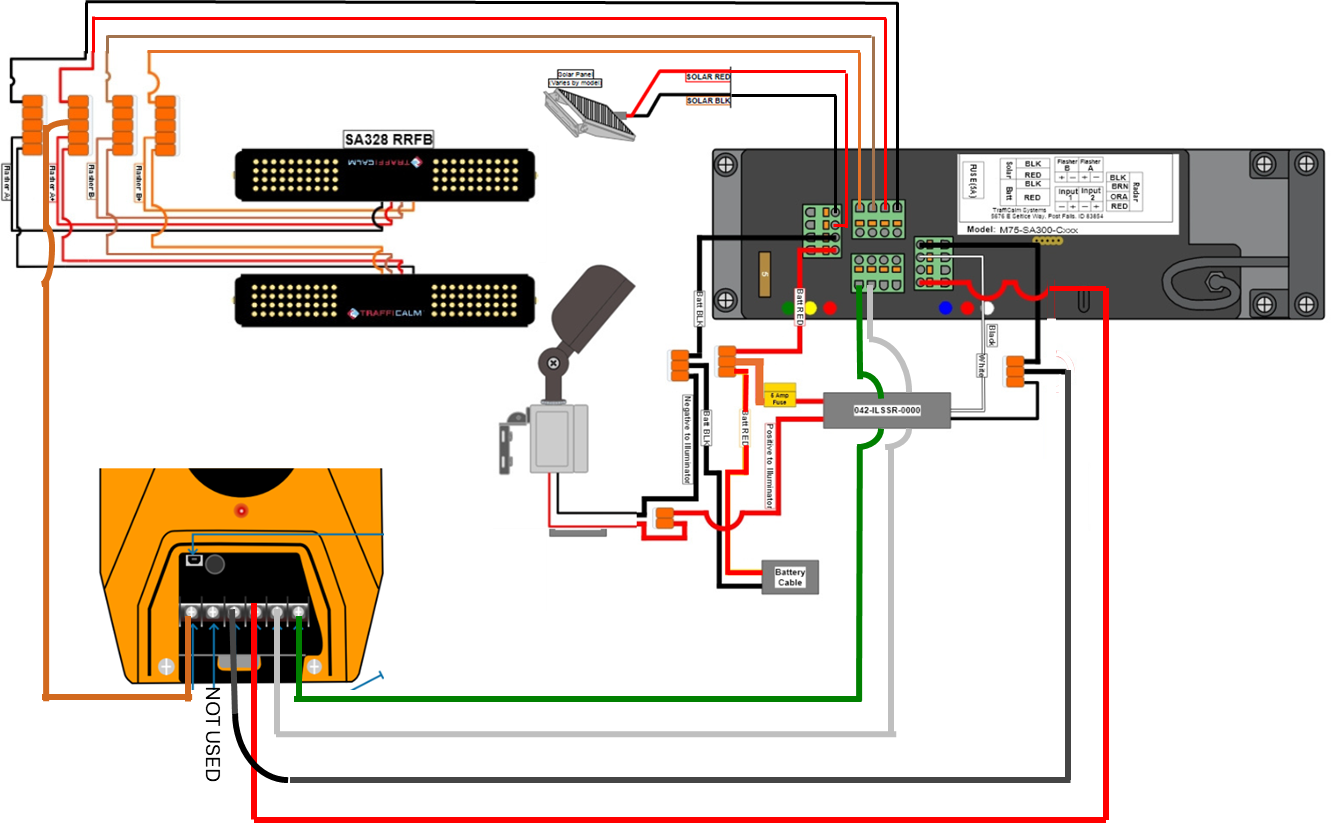

PEDSAFETY Guardian Wiring

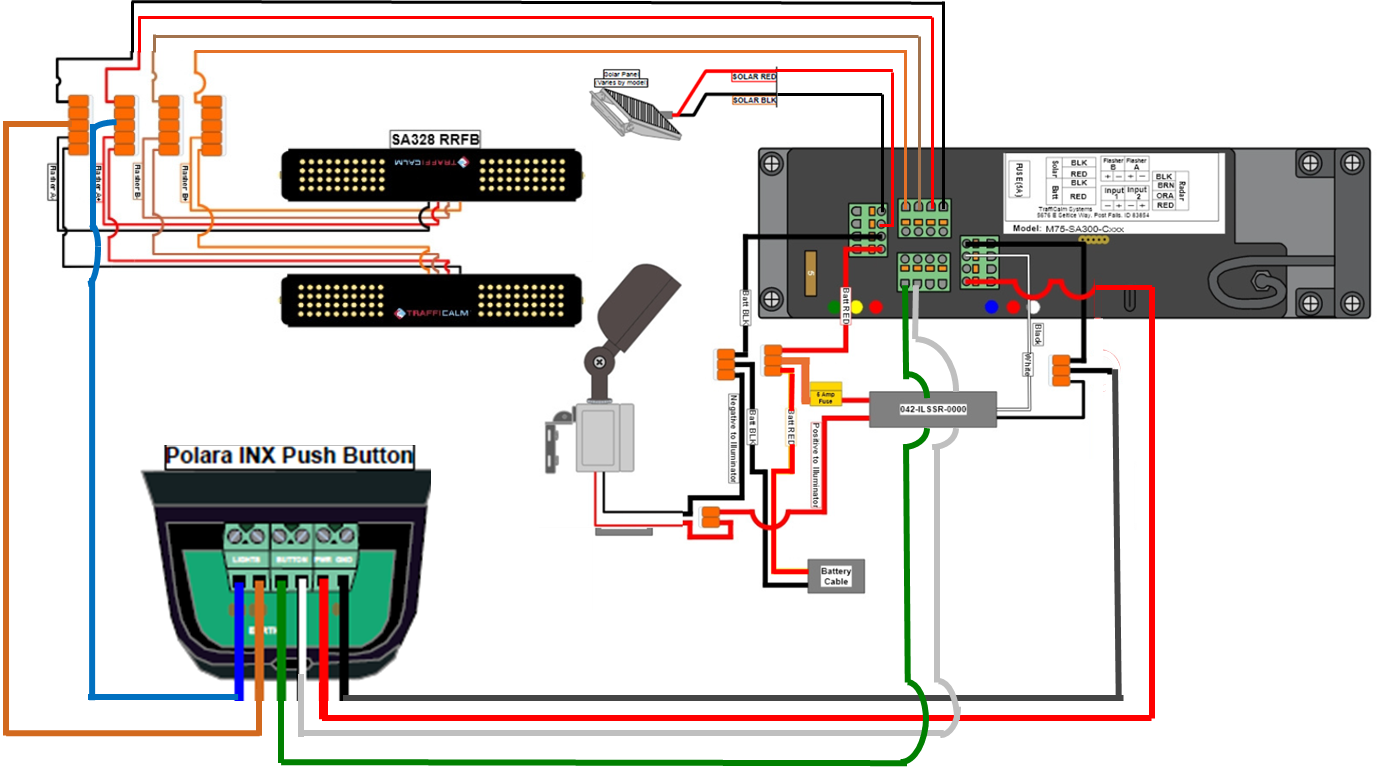

Polara INX wiring
Configuration for Audible Talking buttons such as PEDSAFETY Guardian or Polara INX
In setup under the DEVICE Type, choose the Audible Talking. DO NOT choose illuminator. Illuminator is only chosen when the simple 2 wire button is utilized.
