Introduction

Thank you for choosing the iQ1500 Radar Speed Sign from TraffiCalm. Your commitment to enhancing road safety through advanced technology is greatly valued. This guide aims to ensure a smooth setup and optimal performance of your new speed sign.

What’s in the Box?

For All iQ1500 Signs

• 1 iQ1500 Radar Speed Sign
• 1 Mounting Bracket
• 1 Instruction Manual

Items Not Included

• Power Supply: Necessary for non-portable variations; please acquire separately.
• Mounting Hardware: Due to diverse mounting techniques, consult a local expert for the appropriate hardware required for installation.


Device Overview

• Device Orientation: The iQ1500 is a compact 15-inch tall radar speed sign incorporating a driver feedback display, logic controller, and radar detection system designed for easy maintenance and reliable operation.

Radar Speed Sign Solar Kits

iQ1500 non-portable signs require a 12V power system:

• Solar Kit Options:

  • 60 Watt / 35Ah Solar Kit (M75-SOLAR-000S)
  • 60 Watt / 70Ah Solar Kit (M75-SLR70-000C)
  • 100 Watt / 70Ah Solar Kit (M75-SOLAR-000C)
  • 100 Watt / 140Ah Solar Kit (M75-SLR14-000N)
  • 150 Watt / 140Ah Solar Kit (M75-SOLAR-000N)
• AC Power Kits:

  • 60 Watt power supply (M75-ACPWR-U060)
  • 200 Watt power supply (M75-ACPWR-U200)

Powering Portable Signs

The portable variation of the iQ1500 features an integrated 20Ah battery:

• Charging: Use the provided AC charger designed to optimize battery life. It charges the battery for 6 hours and then automatically shuts off to prevent overcharging.

Tools Required

1. The drop-out module is removed to provide access for bolting to wood.

2. Traditional bolts are used when mounting to a square Telespar pole.

3. Banding is used when mounting to round poles.


1. Remove Drop-Out Module: Detach the drop-out module to access the mounting points on the back of the sign.

2. Position Sign: Align the sign with the desired mounting location on the wooden surface.

3. Pre-Drill Holes: Use template or measurements to align and pre-drill holes.

4. Secure with Bolts: Insert lag bolts through the mounting holes and into the wood. Tighten securely.


1. Position Sign: Align the sign's built-in bracket with the Telespar pole.

2. Insert Bolts: Use traditional bolts, washers, and nuts to secure the sign bracket to the pole.

3. Tighten Bolts: Ensure all bolts are tightened securely for a stable installation.

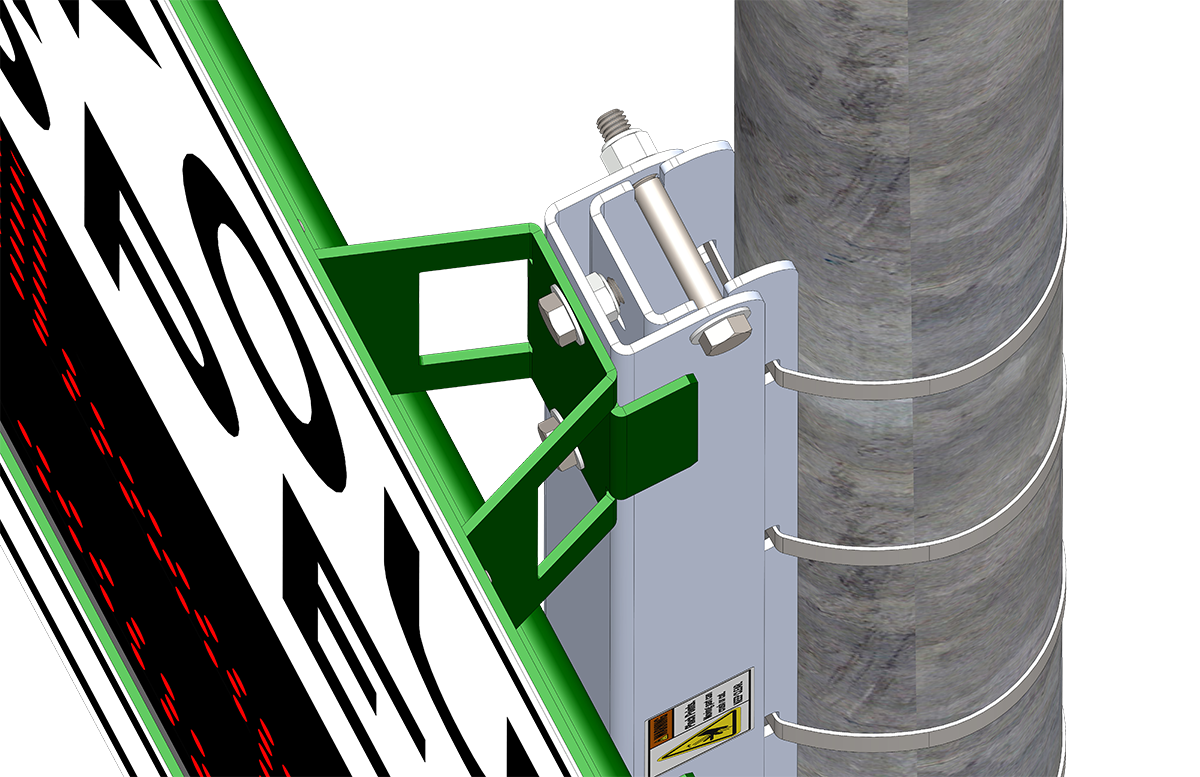

1. Position Sign: Align the sign's built-in bracket with the round pole.

2. Secure with Banding: Wrap banding straps around the pole and through the slots in the sign bracket.

3. Tighten Banding: Ensure the banding is tight and the sign is securely attached to the pole.


Aiming the Sign

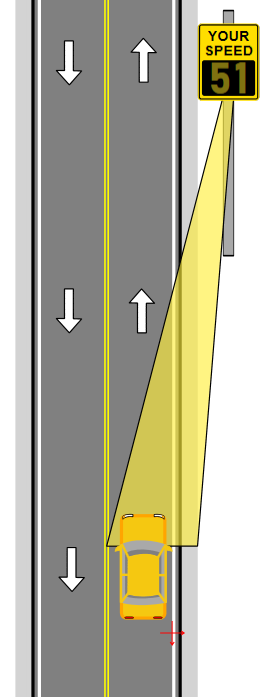

The iQ1500 features an internally mounted radar speed detector that requires proper alignment for accurate vehicle speed detection:

• The sign should face into oncoming traffic, nearly parallel to the traffic flow for optimal operation.
• The angle of incidence (the angle between the face of the sign and the direction of traffic) should ideally be 5 degrees or less.

• Angles greater than 10 degrees may result in displayed speeds that are slower than actual vehicle speeds.

• For maximum detection range, avoid positioning the sign such that lanes of receding traffic fall within the radar detection area.


---

Wiring Instructions

Power Supply Connection

DC Barrell connector 2.5mm

Steps for Connecting the Sign to Power

1. Safety First: Ensure all power sources (battery, solar, or AC) are disconnected before starting.
2. Conduit Installation: Use a liquid-tight conduit to run from the power supply to the sign's field wiring plate, entering through one of the designated knockouts.
3. Wiring Route: Through the conduit, run the 12VDC Positive, common, and Earth/chassis ground wires from the power supply to the sign.
4. Ground Connection: Attach the Earth ground using a ring lug (not provided) to the stud on the field wiring plate.
5. DC Connection: If using a barrel connector, cut the connector off, separate the wires, and strip ½ inch of insulation from each. Identify the positive wire by the white stripe.
6. Terminal Connections:

   • Connect the positive wire to the terminal marked “+12VDC.”
   • Connect the common wire to the terminal marked “DC COM.”
7. Reassemble: Secure the field wiring plate back onto the sign.
8. Power Reconnection: Reconnect the power source—battery, line power, or solar panel.
9. Testing: Once reconnected, test the sign to verify successful installation.


DC Connection Guide

Wiring Diagrams

For more information about wiring TraffiCalm Radar Speed Signs, visit our wiring diagram guides. (coming soon)

Maintenance

To ensure your iQ1500 Radar Speed Sign remains in optimal condition:

• Battery Care: The integrated battery is proprietary and should only be replaced with genuine TraffiCalm components.
• Operational Duration: The battery typically lasts about 3 days; however, as it ages, the duration may decrease.
• Maintaining Battery Health:

  • Avoid leaving the sign turned on when not in use as it can deplete the battery.
  • If unused for more than a week, periodically power on the sign with the charger connected for about 6 hours once a week.

Conclusion

By following these setup and maintenance instructions, your iQ1500 Radar Speed Sign will provide effective speed monitoring and traffic calming. For additional assistance or detailed configuration instructions, refer to the provided instruction manual or contact our support team.
