Sbox specific articles M75-SA300-CTLS/CLBS

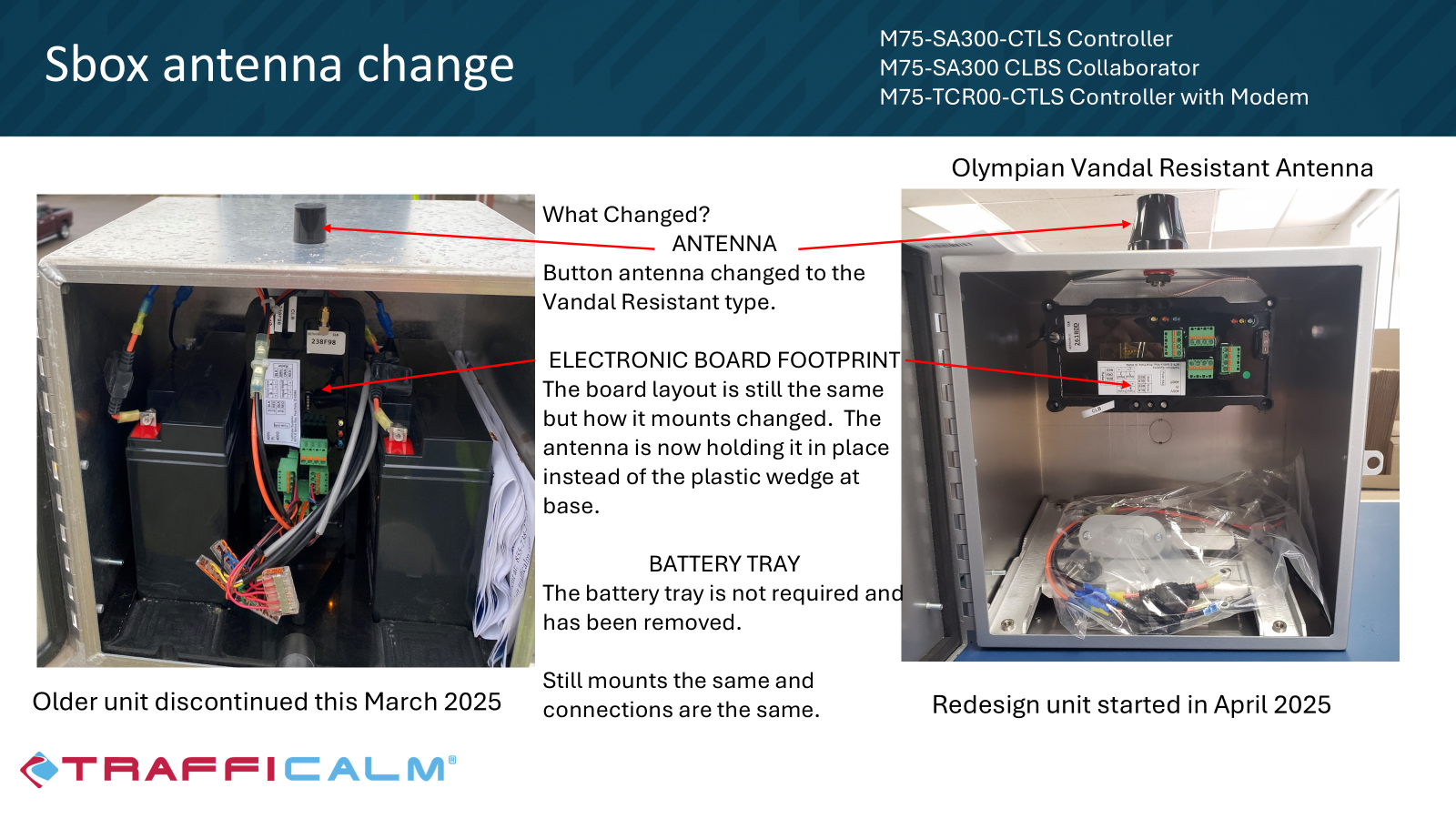

The antenna and electronic tray changed April of 2025.  This picture shows the differences.

If you have an antenna issue or electronic tray issue, please get a picture of the antenna or electronic tray to be included in the tech support request.
