LED Flasher Ring mounting Guide
Overview
The TraffiCalm™ Sign Post Flasher is designed to significantly enhance the visibility of traffic signs. When paired with a flashing sign ring or plate, it creates a highly noticeable alert system that ensures drivers' attention. This guide will walk you through the installation process of the Sign Post Flasher, providing step-by-step instructions to ensure proper setup and operation.
Application
The Sign Post Flasher aims to improve road safety by increasing the visibility of critical traffic signs. Its robust design and easy integration with existing TraffiCalm controllers or collaborators make it an ideal solution for various traffic management applications. Whether enhancing a school zone, pedestrian crossing, or any other traffic sign, the Sign Post Flasher ensures that important warnings are clearly visible to all drivers.
Applicable Models
- M75-R0060-xxxx: Sign Post Flasher
- M75-R0060-FA40: Sign Post Flasher, 60" x 5/8" - Hi-Viz Yellow
- M75-R0060-RR00: Sign Post Flasher, 60" x 5/8" - Red
- M75-R0060-YA40: Sign Post Flasher, 60" x 5/8" - Yellow
- M75-R0060-WW30: Sign Post Flasher, 60" x 5/8" - White
Installation Instructions
Preparing the Mounting Surface
- Clean the Mounting Surface:
- Use the included alcohol swab to thoroughly clean the area where the flasher will be mounted. This ensures proper adhesion.
- (Note: Avoid putting the swab in your mouth; the sensation is unpleasant and ineffective.)
Applying the Flasher
Initial Adhesive Application:
- Peel back the adhesive backing from the top and bottom 6 inches of the flasher. Do not remove the entire backing yet.
- Align the flasher carefully to ensure it is centered and level with respect to approaching traffic.
- Gently press the top and bottom of the flasher to temporarily secure it in place.
Complete Adhesive Application:
- Slowly pull away the remaining adhesive backing while pressing down on the flasher to ensure it adheres smoothly to the surface.
- The bonding tape used is extremely strong, providing a secure hold that will not easily release.
Securing with Screws:
- For additional security, use the supplied self-tapping screws to further anchor the flasher to the post.
Connecting the Flasher
- Wiring the Flasher:
- Route the wiring lead up to the Collaborator or Controller.
- Connect the wiring to the Flasher B output. (see wiring diagram)
Configuration Tips
- Setting Flash Patterns:
- For optimal visibility and compliance with FHWA’s MUTCD, configure the flashers to flash in unison at a 1 Hz/sec rate.
- While alternating flash patterns (using A and B outputs) can create interesting effects, unison flashing is recommended for consistency and effectiveness.

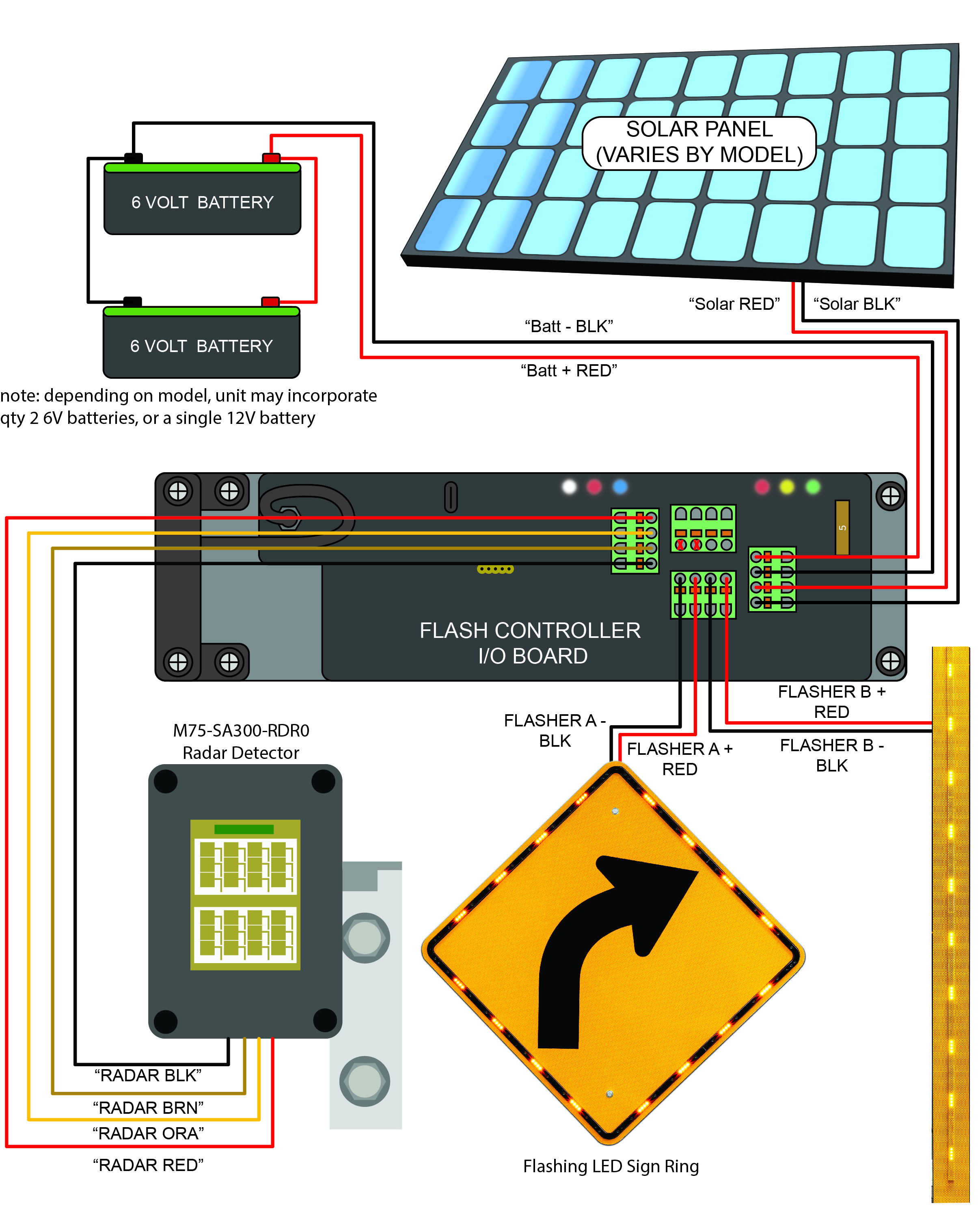

Wiring Diagram
Conclusion
Installing the TraffiCalm™ Sign Post Flasher enhances the visibility and effectiveness of traffic signs, contributing to safer roads. By following this guide, you ensure a secure and professional installation, making your traffic management system more reliable and noticeable. For further assistance or advanced configurations, please refer to the detailed manuals or contact TraffiCalm customer support.
