Overview

This guide provides essential instructions for connecting and troubleshooting solar panels associated with TraffiCalm's Radar Speed Signs. Understanding the correct installation and connection processes for these solar panels is crucial to ensure efficient operation and longevity of the signs, especially in varying regional solar conditions. The guide will detail common issues identified by LED status indicators on the SunSaver controller and offer step-by-step troubleshooting methods.

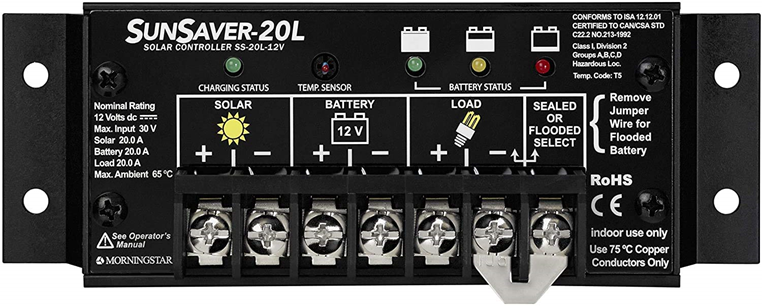

The SunSaver 10L or SunSaver 20L Solar Controller is designed to integrate with our Radar Speed Sign Solar kits.

Applicable Models

This troubleshooting guide is applicable to all Radar Speed Sign Solar Kit models offered by TraffiCalm, designed to accommodate a variety of geographical locations with differing sunlight exposures:

  • 60 Watt / 35Ah Solar Kit (M75-SOLAR-000S) - Solar South Kit
  • 60 Watt / 70Ah Solar Kit (M75-SLR70-000C) - Solar Central Kit
  • 100 Watt / 70Ah Solar Kit (M75-SOLAR-000C) - Enhanced Solar Central Kit
  • 100 Watt / 140Ah Solar Kit (M75-SLR14-000N) - Solar North Kit
  • 150 Watt / 140Ah Solar Kit (M75-SOLAR-000N) - Enhanced Solar North Kit

Each kit is designed to match the solar energy availability of its intended region, ensuring that the Radar Speed Signs operate effectively throughout the year.

LED Status Indicators

Indicator Color Status Meaning
Night or No Solar Input Off (flickers ON every 5 sec) Off No solar input detected; normal during night or extremely cloudy conditions.
Charging Green (heartbeat flicker) Flickers OFF every 5 sec Normal charging; solar input is active and functioning properly.
High Temp/Voltage Disconnect Red Flashing Overheating, overload, or high voltage disconnect detected. Check system conditions.
Sensor/Firmware Error Red Solid Potential sensor damage or firmware issues; requires diagnostic check.
Normal Battery with Load Green Fast Flash (2 sec) Battery is charged and providing power under normal conditions.
Low Battery Yellow Solid Battery is at half capacity; may need attention soon.
High Voltage Disconnect Red/Green Alternating High voltage detected; system disconnect to prevent damage.
High Temperature Disconnect Red/Yellow Alternating High temperature detected; system disconnect for safety.
Wiring Errors Red/Green - Yellow Alternating Wiring issues; check for shorts, reverse polarity, or overcurrent. No permanent damage.
Internal Temp Sensor Damage Red/Yellow/Green Alternating Internal temperature sensor may be damaged; check system health.
Low Voltage Disconnect Red Solid Low voltage detected; insufficient power to sustain operations.

Reset Procedure

  1. Verify and Correct Wiring:

    • Ensure all connections are properly made, especially the load and solar connections.
    • Check polarity carefully: the black wire with a white stripe is positive.

  2. Disconnect Power:

    • Disconnect solar panels and battery connections.
    • Remove fuses from battery lines to completely isolate power.

  3. Wait and Reconnect:

    • Leave the system disconnected for at least 5 minutes to reset.
    • Reconnect the battery first, then solar panels.
    • Ensure all connectors are secure and correctly installed.

  4. Test the System:

    • Power on the system and observe the LED indicators.
    • Use a multimeter to test the battery and solar output, ensuring voltages are within acceptable ranges.

  5. Final Checks:

    • If unusual LED sequences persist, consult the SunSaver manual or contact support for further diagnostics.
    • Regularly check and maintain the system to prevent future issues.

Conclusion
By following the detailed steps provided in this guide, technicians can effectively connect and troubleshoot the solar kits associated with TraffiCalm Radar Speed Signs. Ensuring proper setup and addressing issues promptly will help maintain the functionality and reliability of these traffic management systems. For additional support or more detailed configuration assistance, refer to the TC Speed Connect User Guide or contact TraffiCalm’s technical support team.
