Overview

This guide provides detailed instructions on how to connect various solar panel sizes including 60W, 90W, and 140W, ensuring efficient power supply to your traffic management systems. The connection process varies slightly between different wattage panels due to their specific requirements and junction box designs.
Tools and Materials
  • Multimeter
  • Wire strippers
  • Protective gloves
  • Screwdriver (phillips)

Applicable Models

Solar Panel Kits

  • 50 Watt Solar Panel: Model M75-SLRPN-050W
  • 60 Watt Solar Panel: Model M75-SLRPN-060W
  • 100 Watt Solar Panel: Model M75-SLRPN-100W
  • 150 Watt Solar Panel: Model M75-SLRPN-150W

Radar Speed Sign Solar Kits

  • 60 Watt / 35Ah Solar Kit (Solar South Kit): Model M75-SOLAR-000S
  • 60 Watt / 70Ah Solar Kit (Solar Central Kit): Model M75-SLR70-000C
  • 100 Watt / 70Ah Solar Kit (Enhanced Solar Central Kit): Model M75-SOLAR-000C
  • 100 Watt / 140Ah Solar Kit (Solar North Kit): Model M75-SLR14-000N
  • 150 Watt / 140Ah Solar Kit (Enhanced Solar North Kit): Model M75-SOLAR-000N

60W and 90W Solar Panels

Connection Steps
  • Visual Inspection

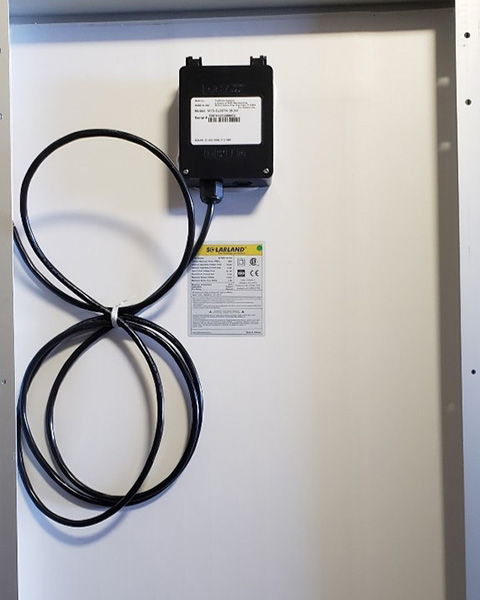

    • Examine the junction box on the back of the solar panel. Look for the silver stripe on the diodes which indicates the top of the housing.
  • Prepare for Connection
    • Ensure the solar panel is not exposed to sunlight or cover the face to prevent unintentional power generation during setup.
    • Open the junction box to access the terminals.
  • Identify Correct Terminals
    • Use the reference images below to identify the positive and negative terminals.
  • Voltage Testing
    • Connect the multimeter to the terminals. Verify that the panel outputs more than 14V on a sunny day or appropriately high voltage under less ideal conditions.
    • Check the polarity by ensuring the red and black wires correspond to positive and negative terminals, respectively.
  • Secure Connections
    • Connect the wires to the corresponding terminals securely. Use waterproof connectors to ensure long-term reliability.

Caution
  1. Always verify connections with a multimeter before finalizing the installation.
  2. Incorrect connections can lead to underperformance or damage to the system.

140W Solar Panels

Connection Steps
  • Locating Connection Points
    • Refer to the manufacturer's guide for identifying the optimal connection points within the junction box. The silver stripe on diodes can be a useful orientation indicator.
  • Voltage and Polarity Checks:
    • Ensure the output voltage exceeds 14V and check for correct polarity using a multimeter.
  • Finalize the Connection:
    • Secure the wires to the designated positive and negative terminals.
    • Ensure all connections are tight and protected against environmental factors.

Adaptability and Precautions
  • Due to possible changes from suppliers, always double-check the current design and specifications of the solar panels.
  • Using a multimeter for final verification of connections is recommended to prevent potential issues.

Radar Speed Sign Solar Kits

Kit Options and Sizing
  • 60W, 100W, and 150W Solar Kits: Choose based on the geographical location and typical sunlight availability. Your regional sales manager can assist with selecting the appropriate kit using a solar calculator, which considers sunlight intensity, temperature fluctuations, and system power requirements.
Connection Process
  • The connection steps for Radar Speed Sign solar kits follow similar principles as outlined above, with specific attention to ensuring that the kit's power output matches the operational needs of the Radar Speed Sign.

Final Setup and Testing

After all connections are made, conduct a final test to ensure the system functions correctly under normal operation conditions. This includes monitoring the sign's response to vehicle speeds and verifying the solar panel's charge capabilities during different times of the day.

Conclusion

By following these detailed instructions, you can ensure a successful and reliable installation of solar panels for a variety of applications, enhancing the functionality and efficiency of your traffic management systems.
