Wiring Guide - A/C Connection (Push 2 Cross)
A/C Connections
Overview:
- E-Series: Fiberglass enclosures that mount to standard poles, offering flexibility with power connection options.
Side-of-Pole Models
- Controllers: M75-SA300-CTLE
- Collaborators: M75-SA300-CLBE
- Basic: M75-SA300-BSCA
- DE0TS: M75-DE0TS-CTLA
Connection Diagram
- AC Adapter: All Flashing Sign System components operate on 12VDC. Systems with AC integration include a UL-recognized and CE-conforming AC to DC supply.

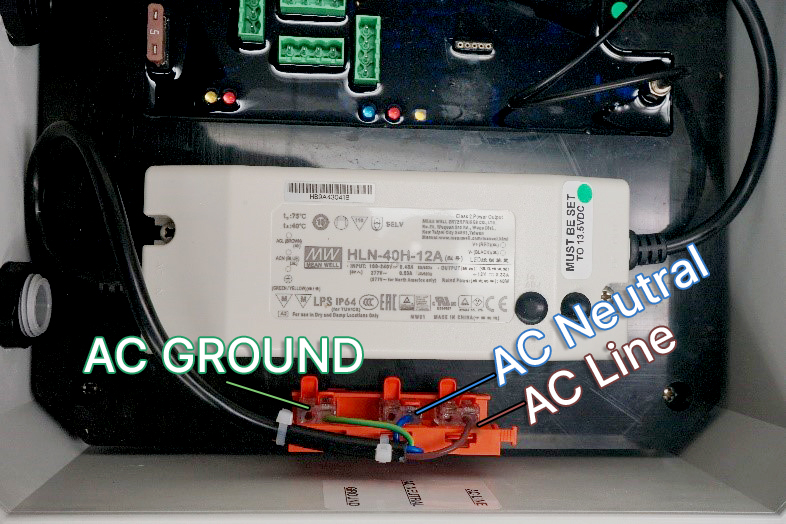

- Connections: Live, Neutral, and Ground connections with easy, tool-free terminals for connecting line-in power.
Note: All other connections follow the same layout as those detailed in the CTL2/CTL3/Basic/Duplex connection diagrams.
Wiring Diagram
Overview:
This diagram outlines the basic wiring for the TraffiCalm Push 2 Cross system configured with AC connections, applicable to a range of standard setups and peripheral units. It's intended to demonstrate the core connections essential for AC integration. As our systems are modular, specific configurations may vary depending on the peripherals involved.
Note: For more specialized setups or to accommodate unique push buttons and other configurations, please refer to the additional wiring diagrams linked below. These resources are designed to guide you through the specific variations needed for your customized system setup.
P2C Wiring Guides
