Solar Connection

Info
Overview
  • CTL2 / CTL3 Series: Intelligent controller and collaborator system utilizing a mesh network for unit communication.
  • Basic Series: Stand-alone units that provide essential functionality for flashing sign systems without the need for additional peripherals.
  • Duplex Series: Same functionality as the other series but with double the battery capacity, suitable for areas with low sunlight.

Top-of-Pole Models

  • CTL2 / CTL3 Series:
    • Controllers: M75-SA300-CTL2, M75-SA300-CTL3
    • Collaborators: M75-SA300-CLB2, M75-SA300-CLB3
  • Basic Series:
    • Basic: M75-SA30M-BSC2, M75-SA30M-BSC3
    • Duplex: M75-SA300-BSC2, M75-SA300-BSC3
  • Duplex Series:
    • Controllers: M75-SA30M-CTL2, M75-SA30M-CTL3
    • Collaborators: M75-SA30M-CLB2, M75-SA30M-CLB3

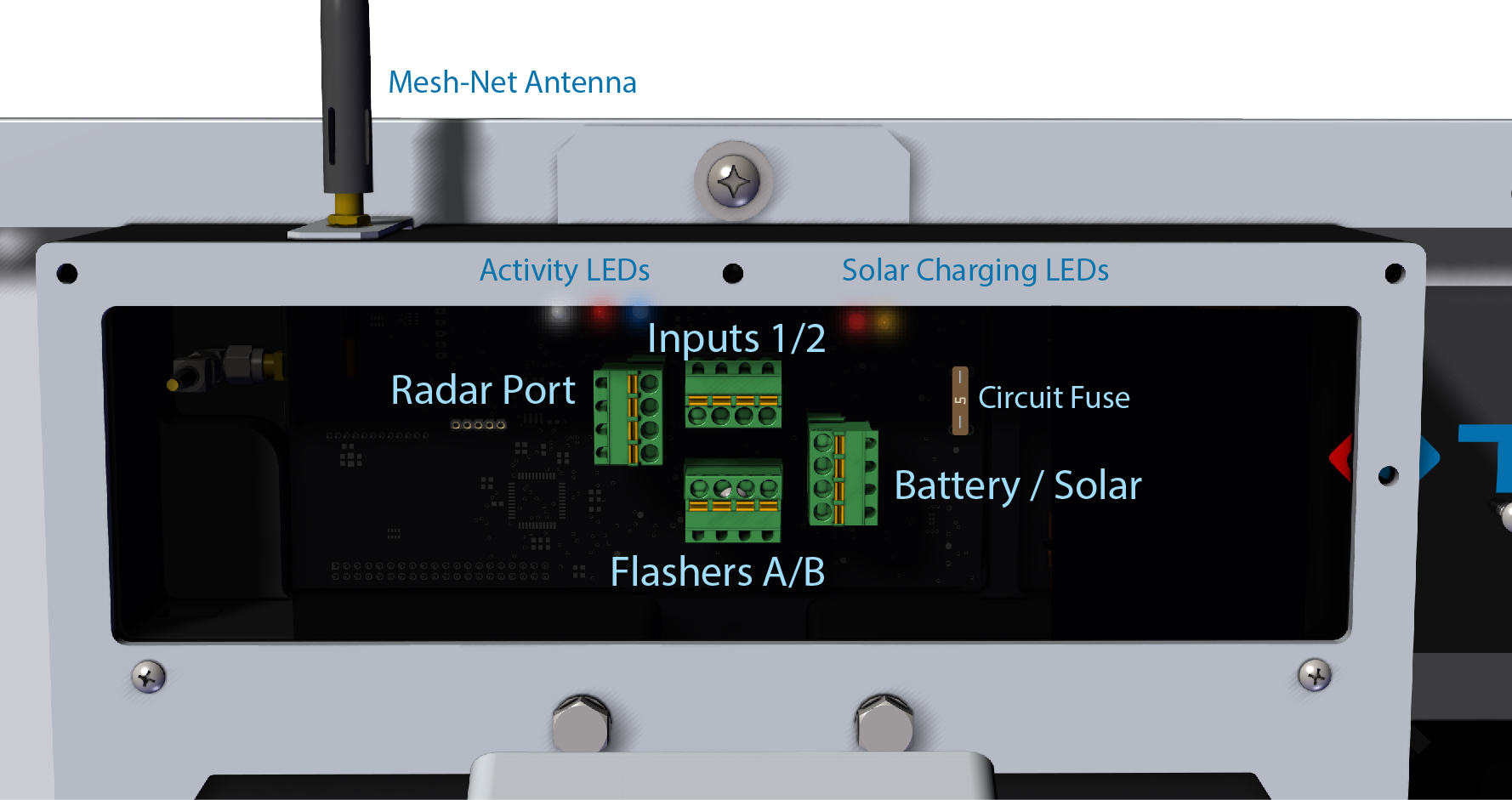

Connection Diagram

  • Mesh-Net Antenna: Mandatory for intelligent controllers and collaborators; must be attached prior to powering on.
  • Activity LEDs: Indicate system status; amber for charging and white for mesh-net activity.
  • Radar Port: Accepts connections from any TraffiCalm radar detector.
  • Inputs 1 and 2: Provide connections for input devices like push buttons and water presence detectors.
  • Flashers A and B: Supply powered outputs for flashing devices up to 10W per channel, such as sign rings, RRFBs, and beacons.
  • Battery and Solar Panel Connections: Facilitate connections for 12V batteries and solar panels to ensure a continuous power supply.
  • Circuit Fuse: Offers protection for the I/O board, with batteries having separate fusing.

Wiring Diagram

Info

Overview:

This diagram provides a foundational wiring overview for the TraffiCalm Push 2 Cross system, suitable for various standard configurations and peripherals. It's designed to introduce you to the essential connections of the system. Given the modular design, your specific installation might need adjustments based on the peripherals used.

Notes
Note: For more specialized setups or to accommodate unique push buttons and other configurations, please refer to the additional wiring diagrams linked below. These resources are designed to guide you through the specific variations needed for your customized system setup.

P2C Wiring Guides
